Today’s post concludes the series on pile fabrics - namely flocked pile fabrics and other pile construction processes.

Base fabric: Tetoron cotton fabric.
Flocking piles: 100% nylon 66.

Flocked Pile Fabrics: A Finish
Flock are very short fibers attached to the surface of the fabric by an adhesive to make a pile-like design or fabric.

In the 1920s white cotton and colored rayon flock dots were used on dress and curtain fabrics and some overall flocking was done on industrial fabrics.

Vintage bubble balloon dress in frothy tulle flocked with velvet polka dots. The sweetheart bodice is ruched and draped, and the skirt has a small crinoline.

A renewed interest in flocking began in the 1960s with the development of new adhesives, new improved substrates and the availability of new precision-cut fibers.

1960s shift dress or house dress. Chocolate brown with white-flocked polka dots.

In apparel, flock is used for velvet or suede-like fabrics as well as for pile designs on fabrics. In the automotive industry, there has been interest in flocked fabrics for floor coverings, head liners, trunk liners and weather stripping.

River Island black flock print velvet backless dress.

Flock may be made from any fiber. Rayon is the most widely used because it is cheap and easy to cut. Nylon, which has excellent abrasion resistance and durability, is tough and requires special cutting knives. Polyester, acrylic and olefin fibers are also used.

Polka dot fabric polyester flocking tulle for lady's shirt/dress fabric.

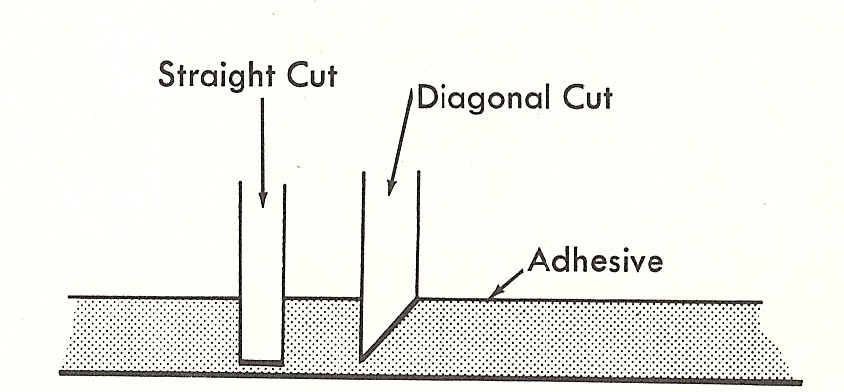

Fibers for flocking must be straight and therefore the length and denier are important. As the fiber length is increased, the denier also must be increased so that the fiber will stand up straight in the fabric. Fibers which are cut square at the ends will anchor more firmly in the adhesive.

Flock with square-cut ends is anchored on the wrong side.

The adhesive is a latex dissolved in a solvent that evaporates. The base fabric can be of any type. For overall flocking, woven fabrics present some problems because of surface irregularities and a heavy filler coating must be used. Some of the newer and cheaper base materials are nonwovens of various types – urethane and vinyl foams. Flock can also be applied to an adhesive film, which can be peeled off and laminated to a base fabric.

Peacock flocked adhesive film.

The two basic methods of applying flocking are mechanical and electrostatic.

Diagrams showing flocking process. Left: Mechanical flocking. Right: Electrostatic flocking.

Chart and comparison of the two flocking processes. Left Column: Mechanical flocking. Right Column: Electrostatic flocking.

In both processes, the flock is placed in an erect position and after flocking the fabric is sent to an oven for drying the adhesive. In the above chart a comparison of the two methods are given. Overall flocking or space flocking can be done by either method.

The potential for flocked fabrics is great. For example, it can be applied to a cloth to effectively clean greasy or oily surfaces. It can impart a pleasing flannel surface to a rubber bed sheet, make burlap with a hand like the most luxurious suede or transform a whole boat desk into one continuous, soft, cool, sure-footed carpet. Beauty and style can be imparted to foundation garments and at the same time engineer the adhesive and design areas to add control where desired etc.

Chenille-type yarns have been made by flocking. Fleece-type fabrics utilizing two pile heights for outer wear are possibilities.

Polyester faux flocking linen yarn/Chenille fabric.

Other Pile Construction Processes
Techniques involving new machines are being investigated in the USA as possibilities for making pile fabrics more economically than by traditional methods.

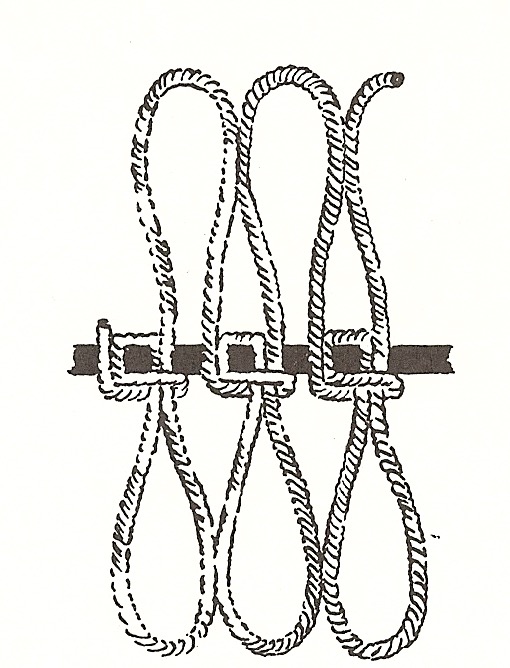

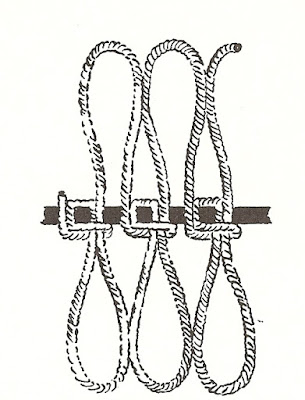

In England a Kraftamatic machine was invented some years ago which combines tufting and knitting. It is a sewing machine above the backing fabric and a knitting machine below it. The difference between this technique and tufting is that the loops are locked firmly in the backing. Loops can be produced on both sides of the fabric.

Kraftamatic machine makes loops on both sides.

It is being used to make terry cloth for towels. Other end uses are diapers, blankets and carpets. The Kraftamatic can produce fabrics ten times faster than a loom.

The Mali and Arachne machines (see future post) can produce pile fabrics through a nonwoven fiber web.

Loop pile produced on an Arachne machine.

[1] N. Hollen and J. Saddler, Textiles, 3rd Edition, MacMillan Company, London (1968).
